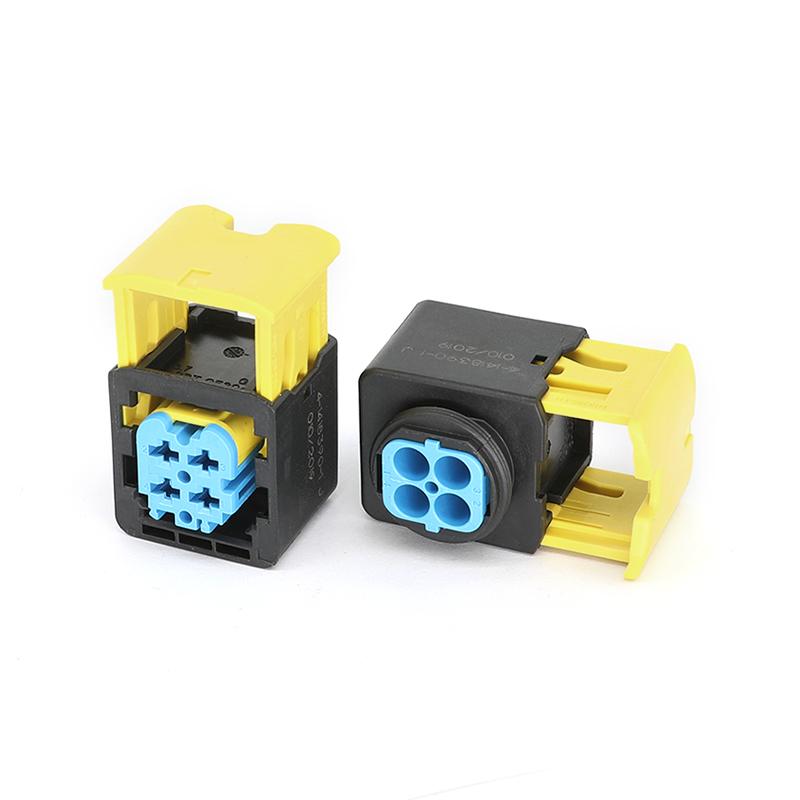

The reliable function of a 4 pin auto connector depends on its ability to survive prolonged exposure to the severe conditions found in automotive applications. Positioned in engine bays, under vehicles, or within wheel wells, these connectors face constant vibration, extreme temperature swings, chemical exposure, and moisture. A failure in a single terminal of a 4 pin auto connector can disable an important system, such as engine cooling or emissions control. Consequently, manufacturers engineer these connectors with a multi-faceted defense system targeting mechanical integrity, stable electrical contact, and environmental sealing. This analysis examines the specific engineering strategies employed to ensure the long-term durability and electrical reliability of the 4 pin auto connector, concluding that its robust design is a direct response to a challenging operational reality.

Mechanical stability begins with the housing material. A 4 pin auto connector housing is typically injection-molded from engineering thermoplastics like PBT (Polybutylene Terephthalate) or PA (Nylon). These materials offer a strong combination of tensile strength, impact resistance, and thermal stability, maintaining their shape and locking features across a wide temperature range from sub-zero cold to under-hood heat. The connector's locking mechanism is a critical component. The primary lock, often a flexible tab on one housing that engages a rigid catch on the other, must be robust enough to resist accidental disengagement from vibration yet allow for intentional disconnection for service. A distinctive click upon mating provides audible confirmation that the 4 pin auto connector is fully seated and locked.

The electrical heart of the 4 pin auto connector is its terminal system. Each of the four terminals is a precision-stamped part, usually formed from a copper alloy for optimal conductivity and spring properties. The female terminal is designed as a spring cage that exerts a consistent normal force on the male pin, maintaining electrical contact even as the assembly vibrates. This contact force is carefully engineered; too little force increases electrical resistance and the risk of disconnection, while excessive force can make mating difficult and accelerate wear. Plating the contact surfaces with tin or a selective gold flash reduces surface oxidation and ensures a stable, low-resistance connection over the life of the 4 pin auto connector. The crimp connection between the terminal and the wire is equally vital, requiring precision tooling to create a gas-tight, mechanically secure joint.

Environmental sealing is what often distinguishes an automotive-grade 4 pin auto connector from a generic one. A fully sealed connector employs a system of seals. Individual wire seals, often made from silicone rubber, fit tightly around each wire at the rear of the housing, preventing water from wicking along the wire strands into the connector cavity. A large circumferential seal, mounted on the header, compresses between the two housings when mated, creating a gasket that blocks moisture and contaminants from entering the pin chamber. This sealing gives the 4 pin auto connector a defined Ingress Protection (IP) rating, such as IP67, indicating it is dust-tight and can withstand temporary immersion. The plastics and seal materials must also resist degradation from exposure to oils, fuels, and cleaning chemicals.

This comprehensive engineering approach ensures that the multiple circuits within a 4 pin auto connector remain isolated, conductive, and protected.

The durability of a 4 pin auto connector is a product of integrated design across materials science, mechanical engineering, and electrical theory. It is not merely a plastic shell with four metal pieces inside, but a system where every element—from the polymer's glass transition temperature to the spring rate of the terminal—is specified to meet rigorous automotive standards. When a technician encounters a well-designed 4 pin auto connector, they are handling the result of extensive testing for vibration resistance, thermal cycling, chemical resistance, and salt spray corrosion. Therefore, whether as original equipment or a service part, specifying a 4 pin auto connector that meets these engineering criteria is essential for a repair that lasts. The connector's ability to reliably perform in harsh conditions underpins the functionality of the critical systems it serves, making its robust design a non-negotiable aspect of modern automotive electronics.
